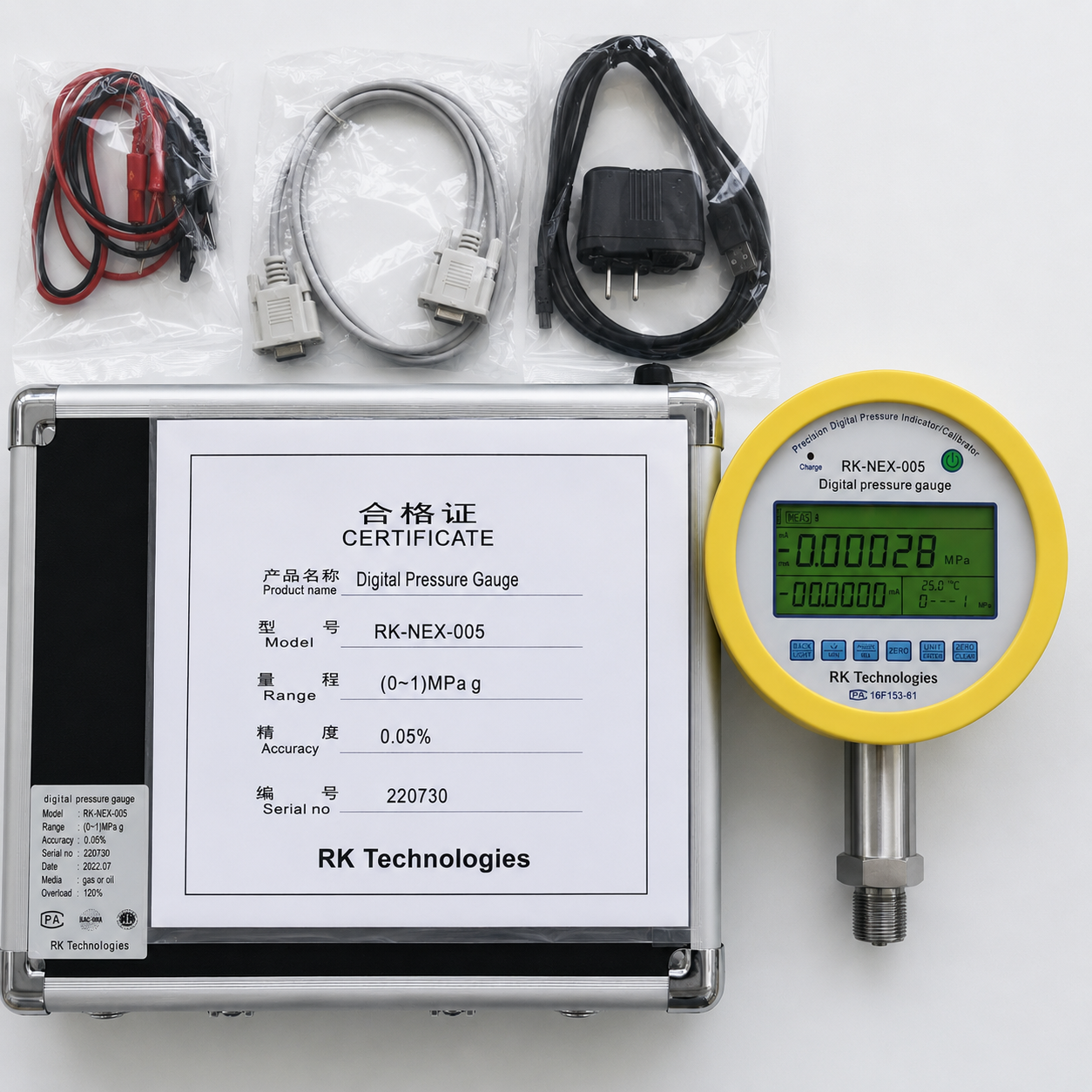

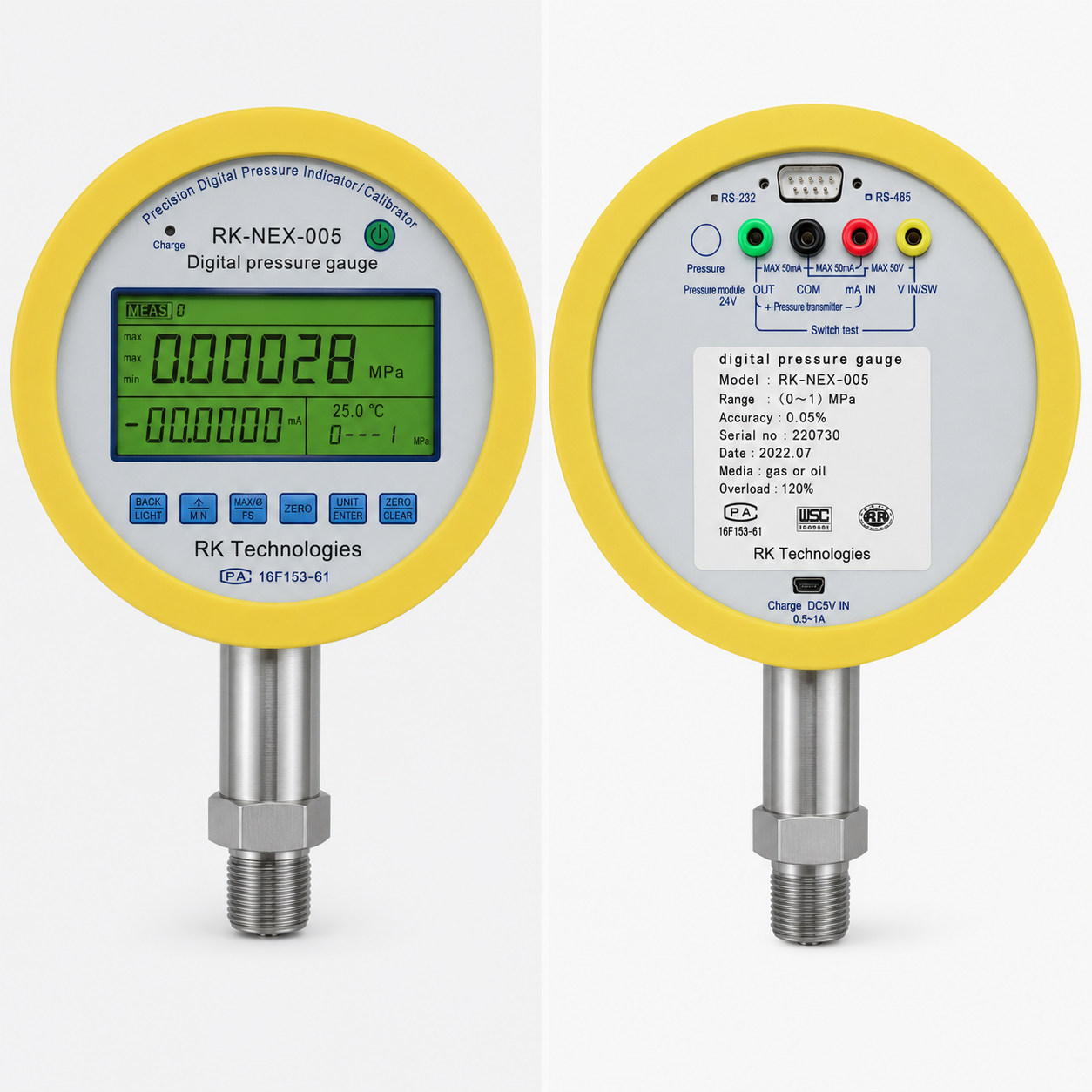

Digital Pressure Gauge 0.05% RK-NEX-005

Technical Specifications Parameter Specification Pressure Range -0.1 to 250 MPa Pressure Accuracy ±0.05% F.S. or ±0.02% F.S. Current Measurement Range ±25.0000 mA Voltage Measurement Range ±50.0000 V DC Voltage & Current Accuracy ±(0.01% R.D. + 0.005% F.S.) DC Power Output 24 V DC ±10%, Maximum Load Current: 50 mA Display Optional 5-Digit or 6-Digit LCD Display Process Connection NPT Thread Connection Operating Temperature 0°C to 50°C Relative Humidity ≤80% RH Battery Working Time ≥80 Hours (Depending on Operating Conditions) Overload Capacity 1.2 to 1.5 Times of Full Scale Dimensions Ø155 mm × 47 mm Thickness Battery 3.7 V / 4000 mAh Rechargeable Lithium Battery with Battery Level Indicator Charging Voltage 5 V DC External Power Supply 220 V AC, 50 Hz Power Adapter with Cable & Connector Spare Battery 2 × Rechargeable Lithium-ion / Li-Po Batteries Included
